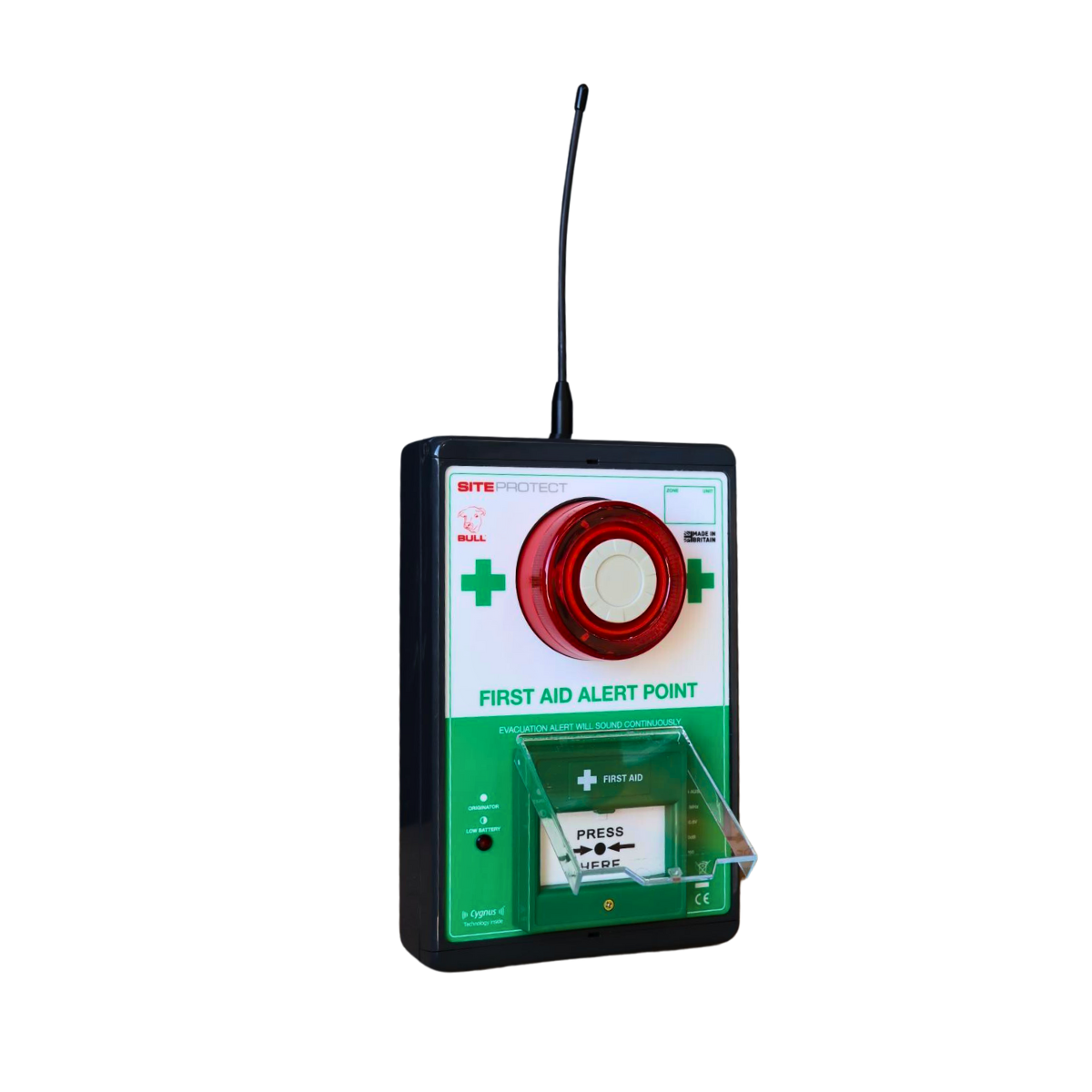

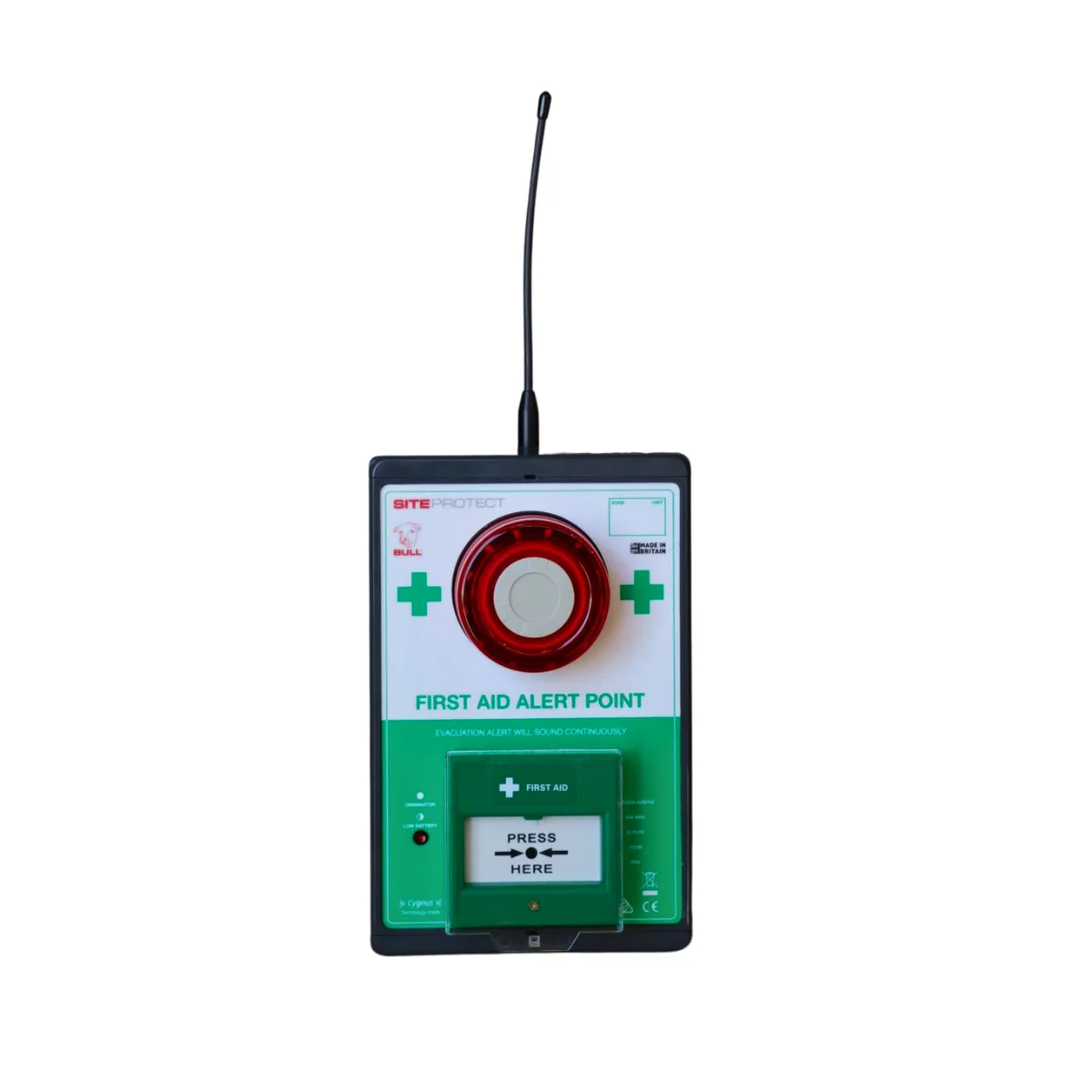

Cygnus SiteProtect Evacuation & First Aid Alert Nurse Call Point Alarm CYG5S4

The Cygnus first aid alert call point puts two different emergencies on one device. Press the green button and a distinct intermittent tone tells the site someone needs medical help. Trigger an evacuation from the control panel and the same unit sounds a continuous 110dB alarm with a strobe. Nobody has to guess which one they're hearing.Each unit talks to every other unit on a mesh network, so there are no repeaters or boosters to install and no cabling to run. Range reaches beyond 1km with clear line of sight, and adding a device extends coverage rather than straining it.

Key features:

• First aid call point with panel-activated evacuation siren
• Mesh network, with each device acting as a repeater station
• Over 1km wireless range with line of sight, no obstructions
• 110dB(A) evacuation siren with high intensity LED strobe
• Distinct first aid tone, sounding intermittently every eight seconds and programmable to silent
• Continuous evacuation alert, activated from the main control panel only
• Single battery pack with at least 12 months life in normal operation, battery included
• IP65 enclosure, waterproof and dustproof for outdoor installation
• Each unit custom named by location
• Custom programming via software: siren delay, call point name, silent nurse call and more
• Optional PIR motion sensor

What happens when a first aid alert is raised

The originating unit sounds an intermittent audible alarm, every other alarm unit on site sounds the same intermittent signal, and the event reports to the control panel, which sounds its buzzer and flashes the LED above the first aid button. That behaviour is configurable: you can set it to silent, or limit activation to a single unit if a site-wide response would cause more problems than it solves.

Where these units go

Stairwells, exit points, main escape routes and temporary service locations are the usual positions. Because the units are wireless and named by location in software, they move with the work. On a construction site where levels open up week by week, that matters more than any other feature on the list.

Nurse call and first aid response on complex sites

A first aid alert system's job is getting the right people to the right place quickly, without anyone shouting up a stairwell. Each unit connects over a long range RF network on a dedicated frequency, so your in-house team can install, position, name and monitor stations without specialist trades. Thick walls and floors can affect connectivity, and a control unit is recommended to manage the system, with optional modules for SMS and radio notifications.

• Easy installation with no specialised skills required
• Quick setup: positioned, named and monitored within minutes
• Retrofits into existing buildings with no hardwiring
• Real-time power and connectivity status for every station
• Single button alerts and cancellations
• Optional SMS and radio modules for direct notification

Every unit here works as part of the wider Cygnus SiteProtect range, which covers control panels, beacons, exclusion zone alarms and lockdown devices. If you're weighing up wireless against a hardwired install, our guide to wireless alarm systems walks through the differences.Pricing is on application because the unit count depends on your site. Use the Product Enquiry button above or call 1800 273 473 and we'll work out what your coverage actually needs.
